CNC Press Brake Machine

Advanced CNC press brake machines with servo electro-hydraulic systems, delivering precise bending with exceptional repeatability and efficiency.

Request A Quote 5 Products Available

Updated August 2026

How should a buyer choose a Press Brake configuration?

Choose a CNC press brake by calculated bending force, bend length, material, tooling, daylight, throat, stroke, backgauge axes, and batch profile. BPE covers compact all-electric work; MPS covers general servo electro-hydraulic bending; BPG covers gantry-frame configurations; MPH covers heavy plate.

Series	Equipment	Best-fit condition	Published range anchor
MPS/MPSS Series	Servo Electro-Hydraulic CNC Press Brake	Servo Drive with Dual Servo Option for Maximum Precision	Bending Capacity (kN): 1100 to 2500
MPH Series	Heavy-Duty Servo Electro-Hydraulic CNC Press Brake	Engineered for Thick Plate Bending up to 2400T	Bending Capacity (kN): 10000 to 14000
BPG Series	Gantry Frame Servo Electro-Hydraulic CNC Press Brake	Open Gantry Structure for Extra-Long Parts	Bending Capacity (kN): 1,100 to 3,200
BPE Series	Electric Servo CNC Press Brake	All-Electric Drive with Zero Hydraulic Oil	Bending Capacity (kN): 150 to 600
Mini HPB	Mini Hydraulic Table Press Brake	Compact Benchtop Hydraulic Press Brake for Precision Small-Part Bending	Bending Length: 200 mm

Published values describe named catalogue configurations, not a blanket guarantee for every material or part. Confirm the selected model with a written quotation and representative sample-part test.

Reviewed by the Metec Engineering Team.

MPS/MPSS Series

View Full Details

MPS/MPSS Series

Servo Electro-Hydraulic CNC Press Brake

Servo Drive with Dual Servo Option for Maximum Precision

The MPS Series offers energy-saving servo drive with high precision CNC control. The MPSS variant features independent dual servo systems for enhanced efficiency and synchronization, with quiet operation and reduced oil usage. Available from 80T to 320T with bending lengths up to 6100mm.

Energy Saving / 节能高效

Servo drive lowers energy consumption while ensuring smooth, consistent bending performance. (伺服驱动降低能耗，同时确保平滑一致的弁曲性能。)

High Precision / 高精度弁曲

CNC control with closed-loop feedback ensures consistent bending angle and quality. (闭环反馈 CNC 控制确保弁曲角度和质量一致性。)

Dual Servo Option / 双伺服选项

MPSS variant features independent dual servo systems for enhanced synchronization and efficiency. (MPSS 型配备独立双伺服系统，增强同步性和效率。)

Quiet Operation / 静音操作

Optimized hydraulic system significantly reduces noise for a more comfortable working environment. (优化液压系统显著降低噪音，改善工作环境。)

Key Specifications

Bending Capacity (kN)1100

Bending Length (mm)2500

Distance Between Columns (mm)2000

Open Height (mm)540

View Full Details

Heavy-Duty Servo Electro-Hydraulic CNC Press Brake

MPH Series

View Full Details

MPH Series

Heavy-Duty Servo Electro-Hydraulic CNC Press Brake

Engineered for Thick Plate Bending up to 2400T

The MPH Series is designed for large thick plates with published bending force from 1000T to 1400T. Its steel frame and multi-cylinder electro-hydraulic synchronization are configured for long bending spans; confirm tolerance with the selected model and an acceptance test.

Heavy Capacity / 大载弁曲

Designed for large thick plates with powerful bending force from 400T to 2400T. (专为大型厚板设计，提供 400T 至 2400T 的强大弁曲力。)

Frame Structure / 机架结构

The steel frame supports large-span bending; final performance depends on the named model, tooling, material, setup, and acceptance method. (钢制机架用于大跨距折弯，最终性能取决于具体型号、模具、材料、设置和验收方法。)

Precise Control / 精确控制

Multi-cylinder electro-hydraulic sync control maintains precision across the full bending length. (多气缸电液同步控制确保全长度弁曲精度。)

Wide Applicability / 广泛适用

Oversized table and high throat depth handle various large, complex workpieces. (超大台面和高咔深度适应各种大型复杂工件。)

Key Specifications

Bending Capacity (kN)10000

Bending Length (mm)4000

Distance Between Columns (mm)3000

Open Height (mm)950

View Full Details

Gantry Frame Servo Electro-Hydraulic CNC Press Brake

BPG Series

View Full Details

BPG Series

Gantry Frame Servo Electro-Hydraulic CNC Press Brake

Open Gantry Structure for Extra-Long Parts

The BPG Series features an open gantry structure providing massive workspace for extra-long parts. Extreme rigidity with strong anti-deflection capability ensures precision under heavy load, with 8+1 axis control for complex bending operations.

Ample Space / 宽敞空间

Open gantry structure provides massive workspace for extra-long parts and complex assemblies. (开放式龙门结构为超长工件和复杂组件提供宽敞工作空间。)

Extreme Rigidity / 极高刚性

Strong anti-deflection capability ensures precision under heavy load across the full bending length. (强大的抗挠度能力确保在重载下全弁曲长度的精度。)

High Productivity / 高效生产

Servo system enables fast ram approach and return speeds for maximum productivity. (伺服系统实现快速滑块接近和返回速度，最大化生产效率。)

8+1 Axis Control / 8+1轴控制

8+1 axis CNC control ensures consistent bending angle across the full length. (8+1 轴数控控制确保全长度一致的弁曲角度。)

Key Specifications

Bending Capacity (kN)1,100

Bending Length (mm)2,500

Column Distance (mm)2,860

Open Height (mm)665

View Full Details

BPE Series

View Full Details

BPE Series

Electric Servo CNC Press Brake

All-Electric Drive with Zero Hydraulic Oil

The BPE Series is a fully electric servo press brake requiring zero hydraulic oil, cutting energy use by 80% versus traditional machines. Significantly lower noise, no oil leaks, and simplified maintenance make it ideal for clean, precise production environments.

Ultra Energy Saving / 超级节能

All-electric drive cuts energy consumption by 80% versus traditional hydraulic machines. (全电驱动比传统液压机节能80%。)

Quiet & Clean / 静音洁净

Zero hydraulic oil means no leaks, significantly lower noise, and a cleaner workshop. (零液压油意味着无泄漏、显著降低噪音，车间更洁净。)

Dynamic Precision / 动态精度

Direct servo motor control delivers extreme positioning precision and repeatability. (直接伺服电机控制提供极高的定位精度和重复性。)

Easy Maintenance / 维护简便

No hydraulic oil or seals to replace, greatly reduces routine maintenance time and cost. (无液压油或密封件更换，大幅减少日常维护时间和成本。)

Key Specifications

Bending Capacity (kN)150

Bending Length (mm)650

Column Distance (mm)300

Open Height (mm)380

View Full Details

Mini HPB

View Full Details

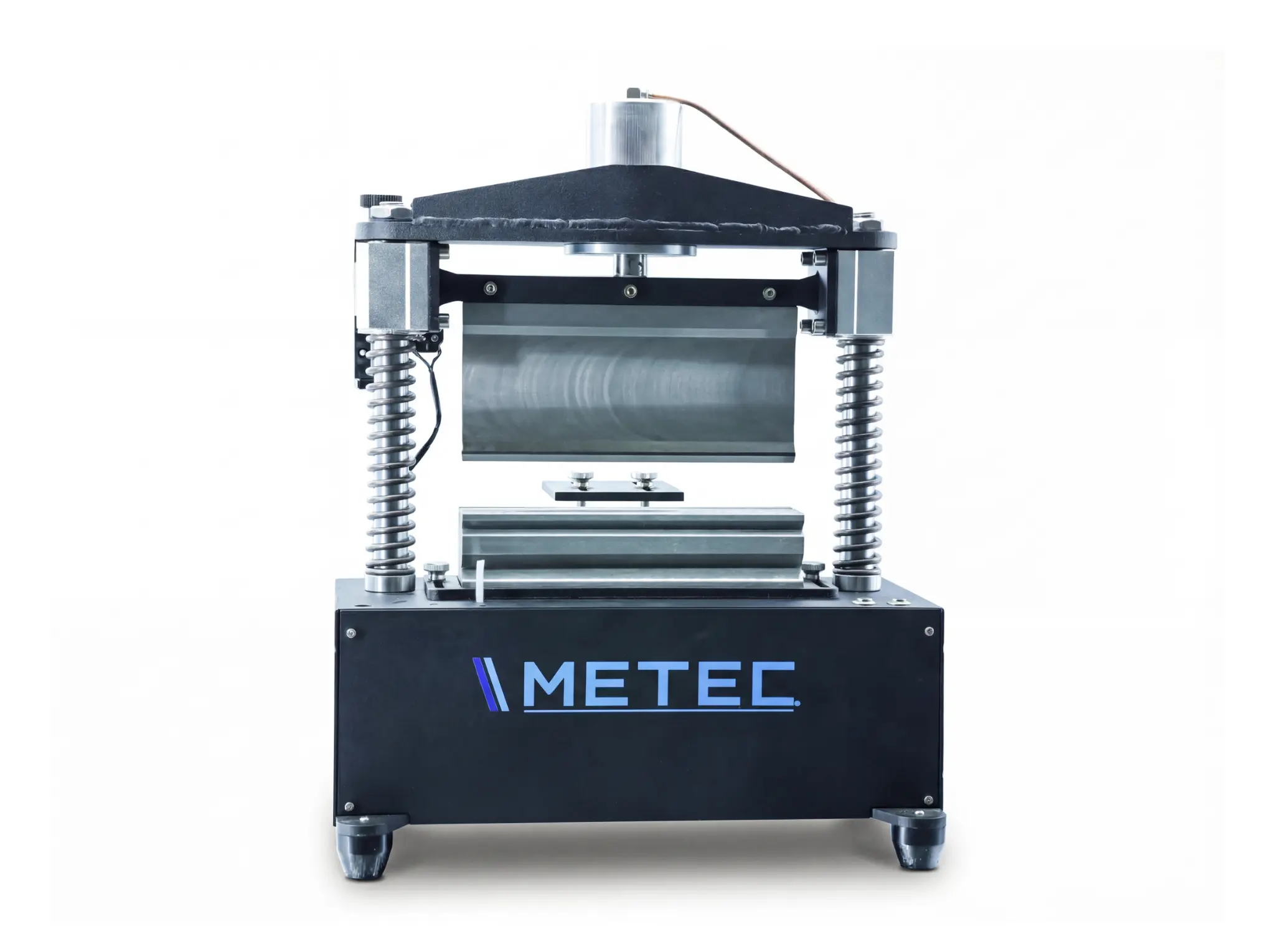

Mini HPB

Mini Hydraulic Table Press Brake

Compact Benchtop Hydraulic Press Brake for Precision Small-Part Bending

The Metec Mini Hydraulic Table Press Brake is a compact, benchtop-mounted hydraulic bending machine designed for precision small-part fabrication. With a 1.5-ton bending force and 200 mm working length, it can handle up to 3 mm thick mild steel sheet metal with ease. Its small footprint (450 × 370 × 250 mm) and lightweight design (22 kg) make it ideal for workshops, prototyping labs, and small-batch production. The standard model operates on 220 V; custom voltage configurations are available on request.

Compact & Portable

Weighing only 22 kg with a footprint of 450 × 370 × 250 mm, this benchtop machine fits comfortably on any workbench and can be relocated with ease — ideal for small workshops, R&D labs, and prototyping environments.

Hydraulic Precision Bending

Delivers 1.5 tons of consistent hydraulic bending force across the full 200 mm working length, ensuring repeatable, accurate bends on mild steel up to 3 mm thick without manual effort.

Versatile Material Compatibility

Suitable for bending mild steel, aluminium, copper, and other sheet metals up to 3 mm thickness. Compatible with standard V-dies for a wide range of bend angles and profiles.

Custom Voltage Available

Standard configuration operates on 220 V single-phase power. Alternative voltage specifications (e.g. 110 V, 380 V) can be configured at the time of order to suit local electrical standards worldwide.
